GAB (Graded Aggregate Base) for Georgia Red Clay Ground

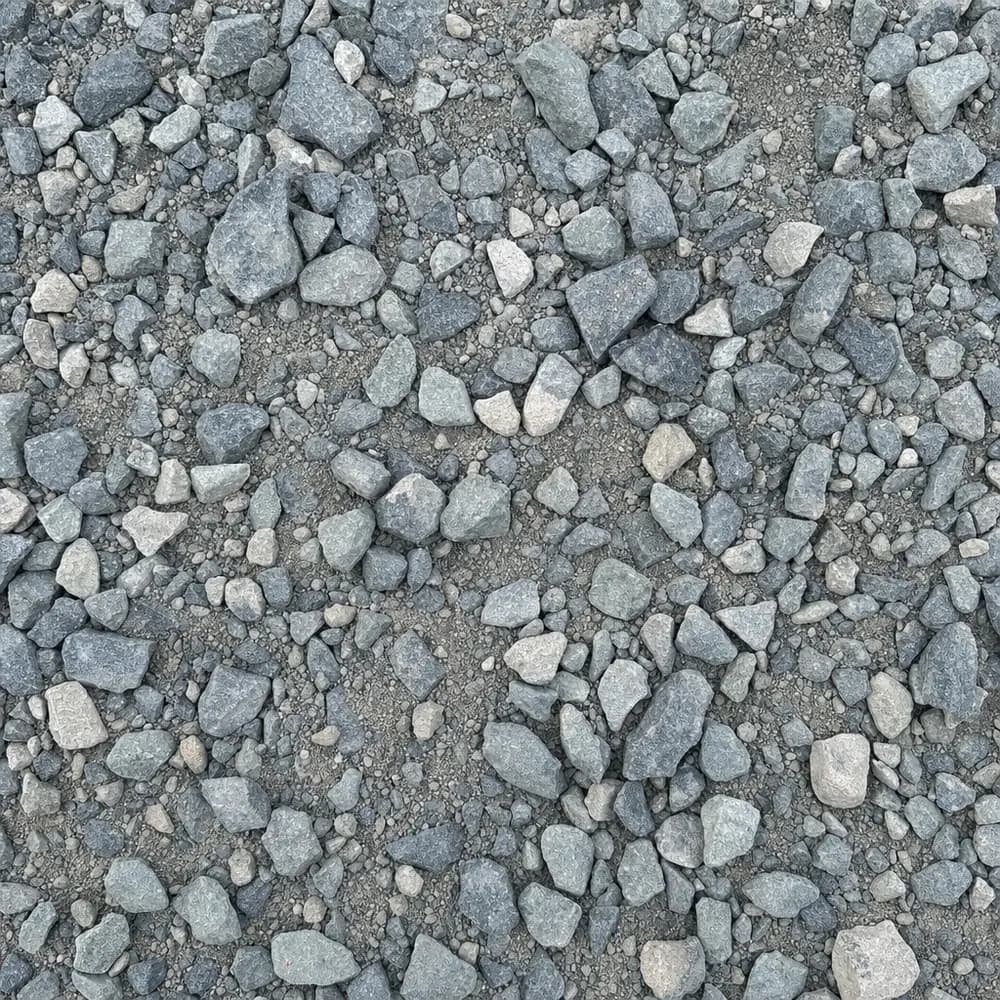

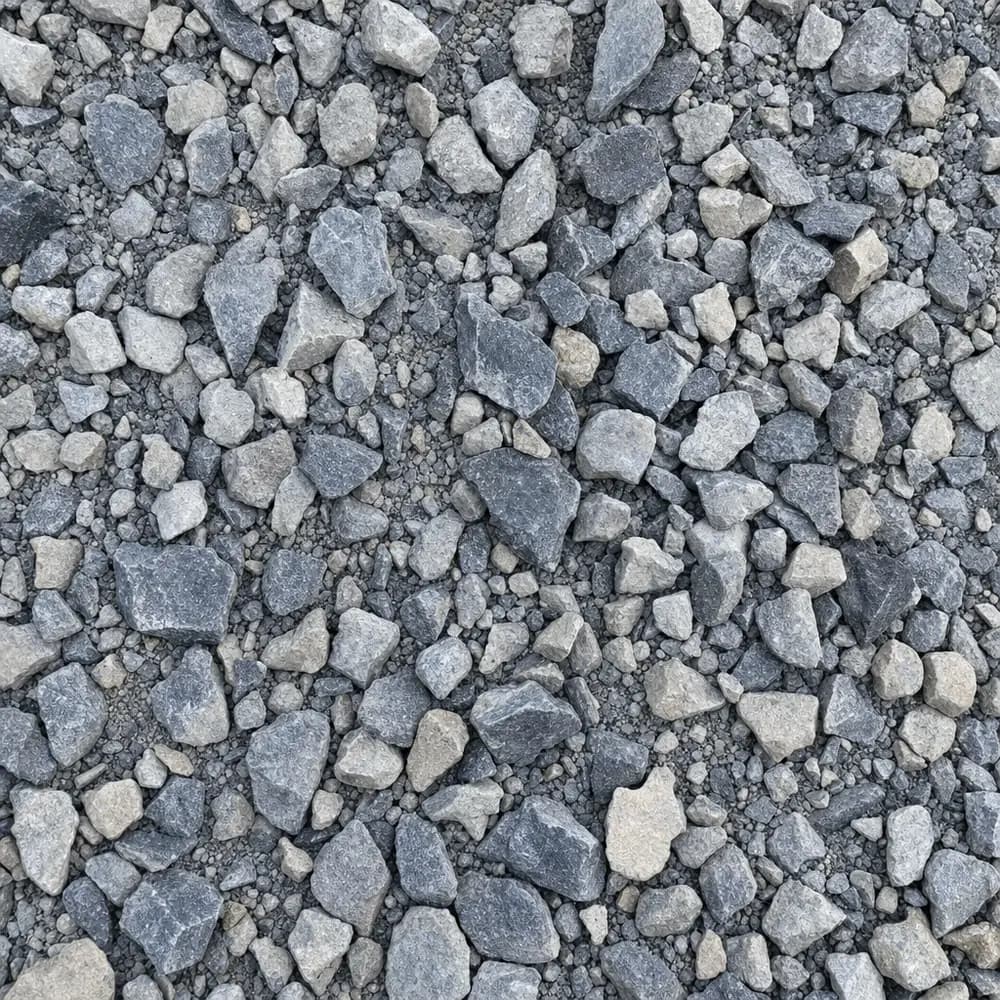

The job that sends most Georgia homeowners looking for graded aggregate base is a drive that was surfaced without one. A load of stone went straight onto red clay, it looked right through a dry autumn, and then a loaded truck crossed it after a wet week and left tracks that never came out again. GAB is the layer that should have gone in first. It is a 3/4 inch minus material, a graded mix of crushed stone, gravel and binding fines, and it is the crushed aggregate blend that GDOT Section 815 describes when a Georgia plan sheet calls for graded aggregate base.

The stretch of the year when clay will actually take a base

Base work runs close to year round here. What stops it is not the calendar but the state of the ground. Red clay sheds rain fast off a slope and then holds every drop once it is saturated, and the flat spots stay soft the longest. After a long wet spell, or after the remains of a tropical storm have come through, clay subgrade turns into something a plate compactor only kneads instead of tightening. The material is not what fails. The ground under it is.

Frost is not the driver in this state. Freezes are light across the Piedmont from November into March, the Georgia residential code sets a 12 inch minimum footing depth, and down on the Coastal Plain frost has almost nothing to do with how thick a base needs to be. Depth here is set by wet clay and by where the water goes.

The practical window is a few dry days in a row, not one. Clay that looks fine on the surface on a Thursday morning can still be greasy six inches down. In the north Georgia mountains the calculation shifts a little: the ground freezes more often, snow or ice can cost a week in January, and the steep ground sheds and dries faster once the rain stops.

Getting soft ground ready before the load lands

Strip the organic layer and the grass. GAB placed over turf has nothing to lock into, and the roots rot out underneath it across the next two seasons. Cut the route or the pad to grade and give it fall. Even a quarter inch per foot across a pad keeps a summer downpour moving instead of standing on top of the compacted layer.

Then find the soft spots rather than covering them over. Run a loaded wheelbarrow or a small tractor across the prepared area and watch for places that pump water up under the wheel. Those want digging out and replacing with a coarse stone that will not squeeze together, before any base goes over the top. Geotextile fabric between clay and base is worth the trouble on ground that stays wet, because it stops the two layers working into each other.

Keep the GAB slightly damp while it is being compacted. The fines need moisture to bind, and material that has been sitting in a July sun will not tighten dry.

Where a compacted graded aggregate base layer earns its place

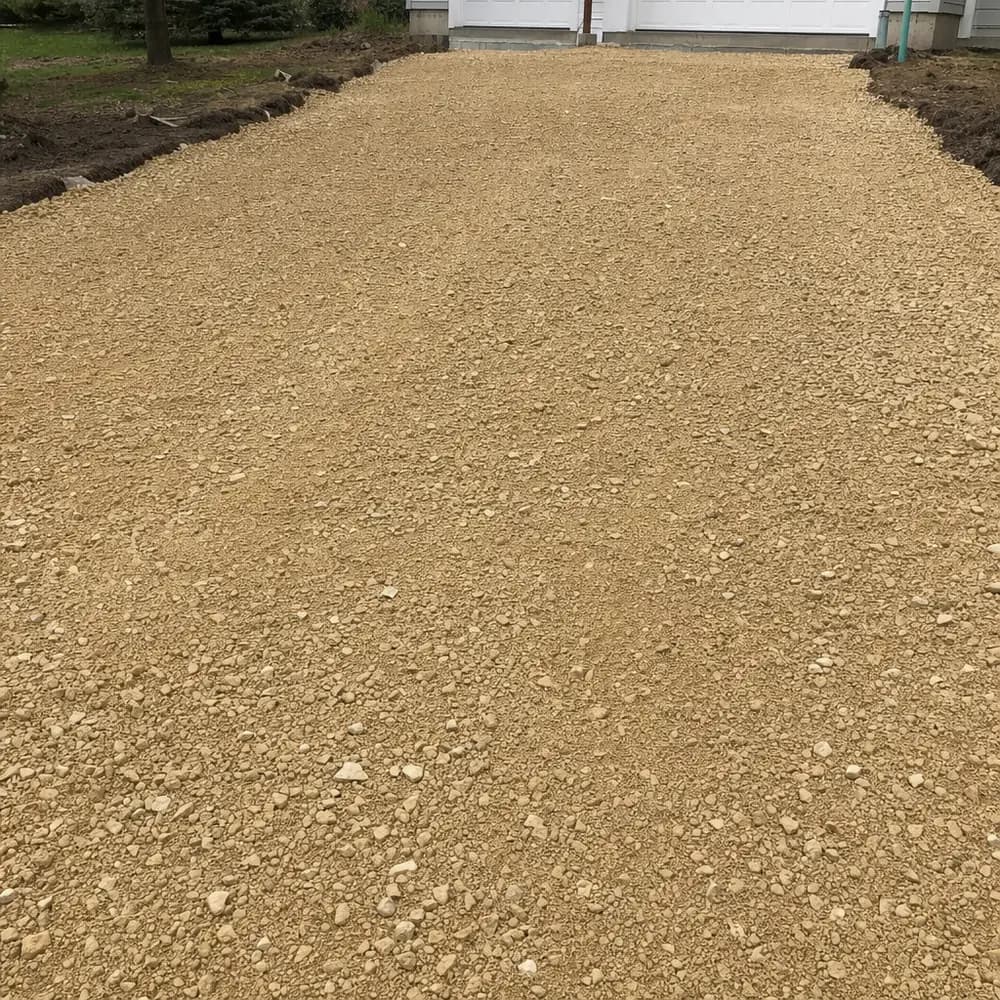

Drives and turnarounds are the common one, particularly where the approach carries a boat, an equipment trailer or delivery trucks. Building pads and crawlspace pads come next, then parking areas, then the working routes on an active site where machinery has to keep moving through a wet spell.

A hot tub pad is a good illustration of the quiet job GAB does. The tub is not the problem. The filled weight sitting in one place, on clay that swells and shrinks through the seasons, is. A compacted base spreads that load across a wider footprint of subgrade so it settles evenly or not at all.

A side yard dog run is a smaller version of the same logic. The traffic is light but constant and always on the same line, and bare clay in that strip turns slick from June onward.

New lawn prep is the job people occasionally buy GAB for by mistake. Base material is the wrong thing under grass. If the plan is turf or beds, the order is Top Soil over a shaped subgrade, with Fill Dirt underneath if the ground has to come up first.

Yardage for a hot tub pad and a side yard dog run

Both of these are hypothetical examples, worked through to show the arithmetic rather than to describe a real project.

A 10 by 10 foot hot tub pad at 6 inches of base: 10 x 10 x (6 / 12) = 50 cubic feet, and 50 / 27 = 1.85 cubic yards. Order 2 cubic yards and there is a little spare for the edges.

A dog run 6 feet wide and 40 feet long at 4 inches: 6 x 40 x (4 / 12) = 80 cubic feet, and 80 / 27 = 2.96 cubic yards. Call it 3.

Those are loose volumes before compaction, which is the number that matters when you are deciding what to have dropped. This site's calculator pages put crusher run and road base at roughly 3,000 lb per cubic yard, about 1.50 tons per yard, and on that approximate figure the hot tub pad is 1.85 x 1.50 = about 2.8 tons and the dog run 2.96 x 1.50 = about 4.4 tons. Put your own length, width and depth into the Road Base Calculator to check them. Delivery is arranged at checkout by ZIP code, and the truck needs a clear run to the spot where the pile is going to land.

What a summer of thunderstorms does to a finished base

A base that was compacted properly and given fall comes through its first storm season without much drama. What goes wrong is nearly always drainage. Water running off a roof onto the edge of a pad will undercut it. A drive that sheds into a ditch line with nowhere to go soaks the shoulder and lets the edge crumble inward.

Walk the edges after the first few big rains and look at where the water is leaving. Where a run has concentrated, a short apron of #57 Granite at the outlet takes the energy out of it. Where the surface course has thinned, top it up with a fresh layer of drive stone rather than letting traffic grind down into the base.

To size an order, measure the area, run the depth through the calculator, then pick a quantity and a delivery date on this page. If the access is tight or the drop spot is awkward, say so through Contact before you book, and check how delivery is arranged by ZIP code.
