RipRap for Georgia Creek Banks and Culvert Outlets

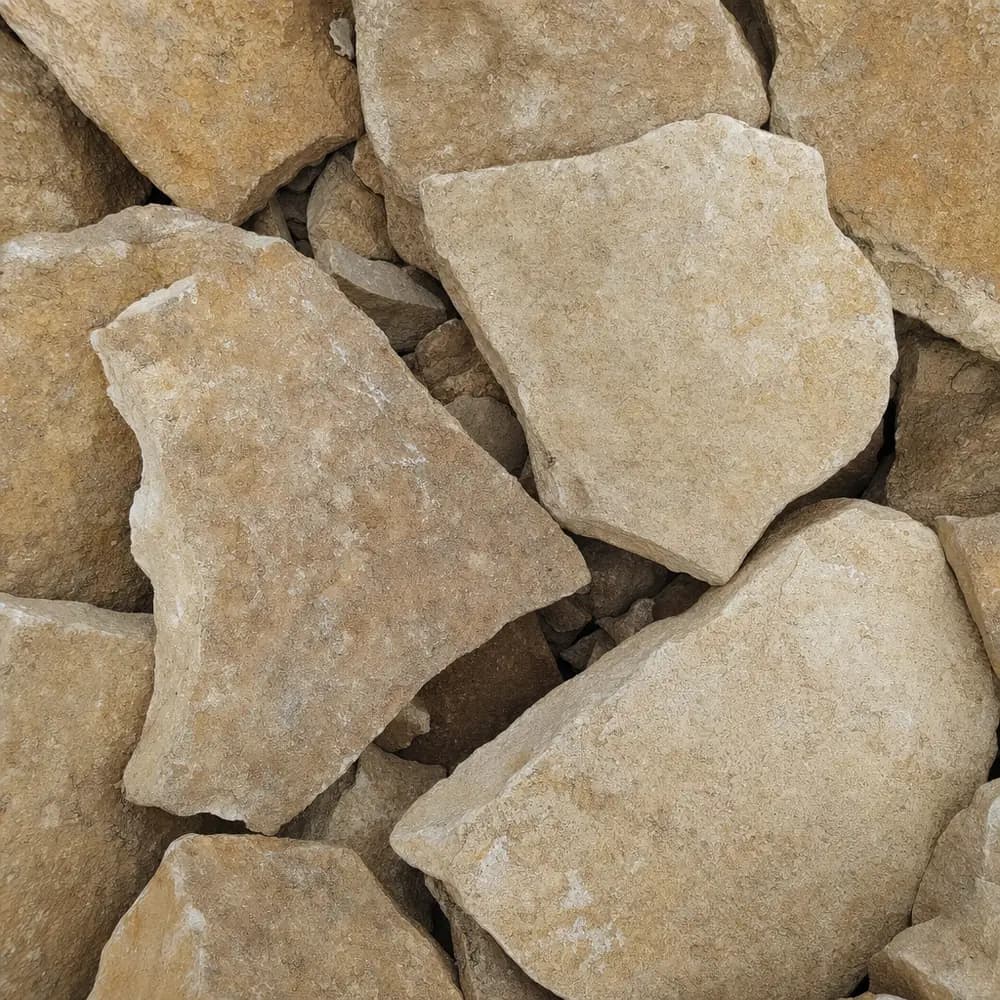

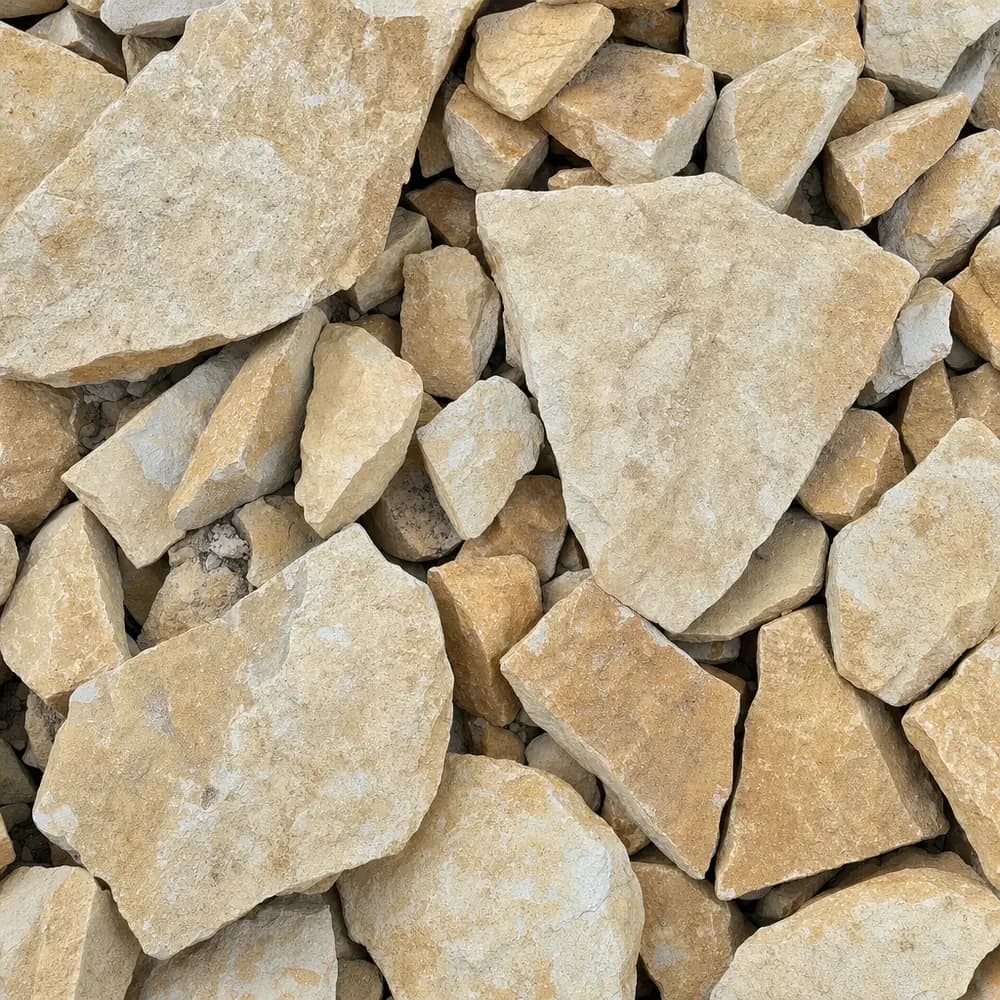

When the remains of a tropical storm drop several inches on ground that is already saturated, the damage across a Georgia property turns up in the same three places: the creek bank at the back of the lot, the ditch line along the road, and the patch of red clay below a culvert where the water lands. Riprap is the material that goes into those three places. It is large, heavy stone running from 4 inches up to 12 inches and larger, and GDOT specifies stone rip rap as Type 1 or Type 3 depending on the sizing a job calls for.

#4 stone, railroad ballast and riprap: where each one stops

Most people price the smaller stone first, and on a gentle swale that can be the right call. The dividing line is whether moving water can pick a piece up.

#4 Crushed Stone is a coarse angular stone that does real work on construction entrances and heavy drainage, but a concentrated storm flow off a clay slope will roll it downhill and pile it at the bottom. Railroad Ballast is heavier again and holds better under load, though it is built for bearing weight rather than resisting flow.

Riprap is a different category. The pieces are large enough that their own weight, not their arrangement, is what keeps them in place. That is why the sizing on a bank is set by how fast the water moves rather than by how the stone looks. Some Georgia suppliers sell large granite of this kind as surge stone, with sizes varying from yard to yard, so check the actual range rather than trusting the name.

Rounded stone is the other thing worth ruling out. Large River Rock sits beautifully in a decorative dry creek bed and will not stay put in a live one, because rounded faces give the pieces nothing to lock against.

Creek banks, ditch lines and the ground below a culvert

The outlet is the classic job. Water leaves a pipe with energy that has nowhere to go, and on bare red clay it cuts a hole in a single storm. Armoring starts at the pipe mouth and continues across the whole area receiving the flow, not just the first few feet, and it wraps far enough up each side that the flow cannot simply cut around the edge of the stone.

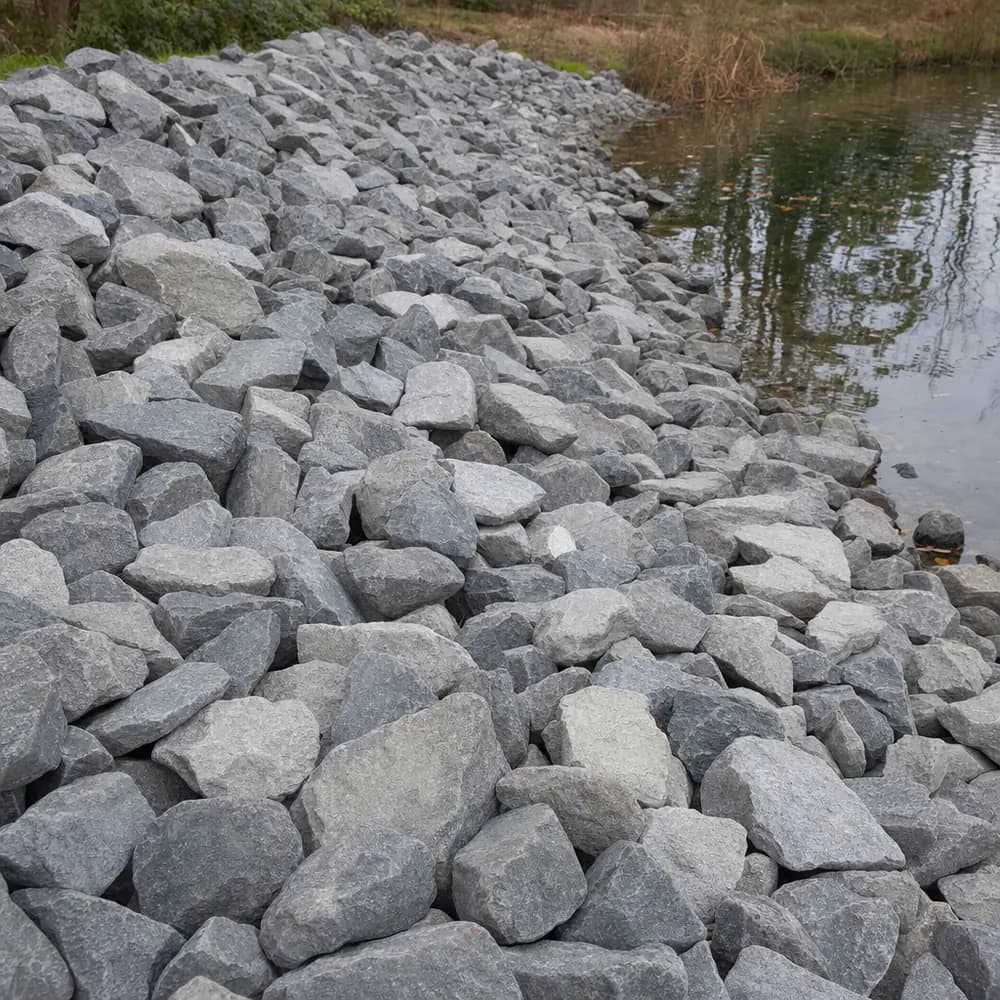

Creek banks are the second. A scoured bank keeps sloughing after every heavy rain because the toe is undercut, so the stone has to start at the bottom of the bank and work up. Armor the top and leave the toe exposed and the whole thing drops into the creek in one piece.

Bare slopes and cut banks are the third, particularly where recent grading has left red clay exposed on a grade steep enough to run. Channels and spillways round out the list, wherever concentrated flow is scouring.

Keep the protected area on the flow path. Armor one side of a ditch only and the water simply attacks the other one.

Depth and stone size for a bank facing summer runoff

The layer wants enough thickness to hold more than one stone across, so a single piece being moved does not open a hole down to the soil. That means a depth based on the size of the stone you are using rather than a fixed number of inches.

Piece size is chosen for the flow. A grass-lined swale that trickles most of the year and runs hard for twenty minutes after a storm needs smaller stone than the ground below a culvert draining a subdivision. Where a plan sheet or an engineer specifies Type 1 or Type 3, follow it.

Underneath, the layer needs something to stop the soil washing out through the gaps between stones. On red clay that means geotextile fabric, or a filter course of smaller stone, laid before any of the heavy material goes on. Skipping that step is the usual reason stone that looks right sinks into the bank over two or three seasons.

Set the stones rather than leaving them where they land. Pieces turned so their flat faces bear against each other interlock, and the edges of the run are worth taking care over, because a storm finds the edge first.

Sizing a swale crossing and the slope above raised beds

Two hypothetical examples, with the arithmetic shown.

A flagstone walkway crossing a drainage swale, where the swale section is armored for 20 feet at 3 feet wide and 12 inches deep: 20 x 3 x (12 / 12) = 60 cubic feet, and 60 / 27 = 2.22 cubic yards. Order two and a quarter, and expect the stone to sit higher and looser than a compacted material would.

A run of raised vegetable beds sitting above a cut bank, with the bank armored for 18 feet at 5 feet wide and 12 inches deep: 18 x 5 x (12 / 12) = 90 cubic feet, and 90 / 27 = 3.33 cubic yards. Call it three and a half.

Both figures are loose volume, which is the honest way to plan for stone this size because it never compacts. This site's calculator pages put rip rap and armor stone at roughly 3,100 lb per cubic yard, about 1.55 tons per yard, and on that approximate figure the swale crossing is 2.22 x 1.55 = about 3.4 tons and the armored bank above the beds 3.33 x 1.55 = about 5.2 tons. Take your own measurements to the Rip Rap Calculator to check them.

Where it does not belong: play areas and garden paths

A playground surface is the clearest example of the wrong job for this stone. Nothing in the 4 to 12 inch range is safe to fall onto or walk on barefoot, and play areas want Mason Sand or a small rounded gravel instead.

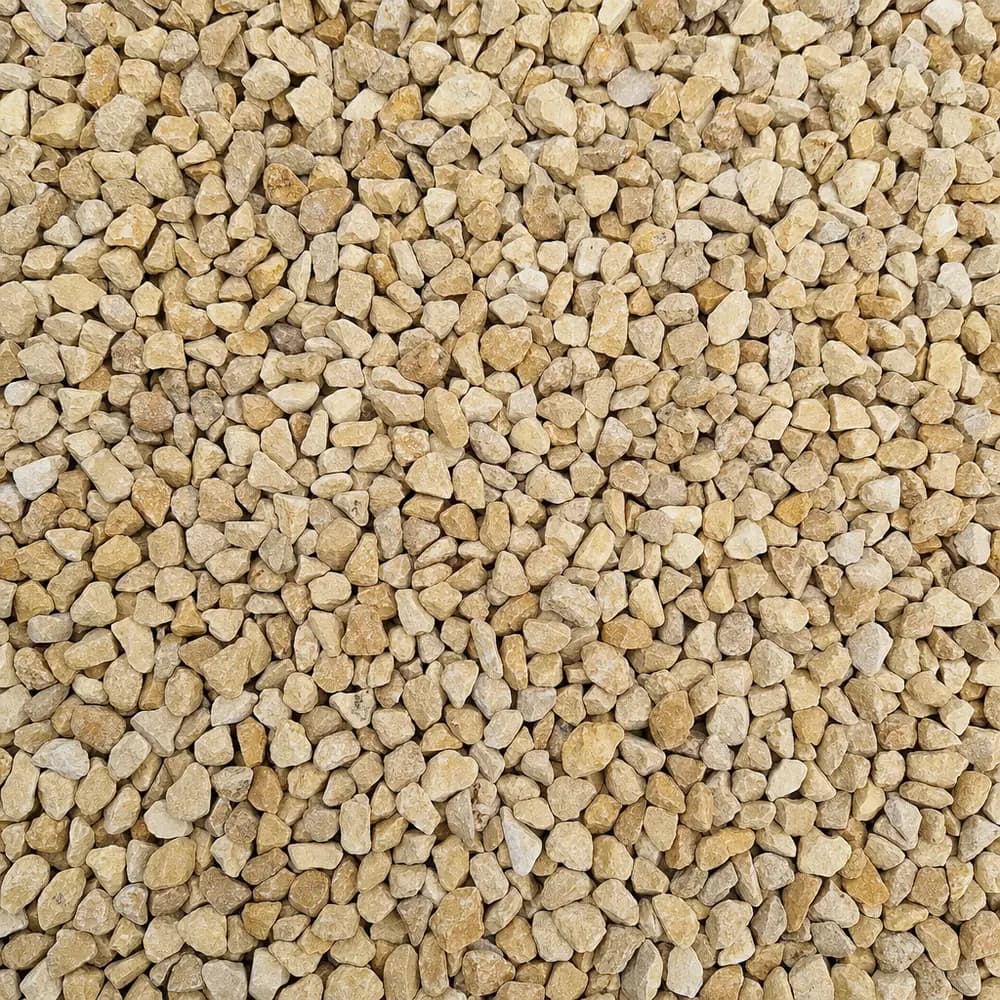

Garden paths are the same story at a smaller scale. A path built from heavy stone is a path nobody uses. Walkway Gravel does that job.

Raised beds themselves are fine to build around, but the stone belongs in the bank below them holding the ground, not in the beds.

When you have your volume, pick a quantity and a delivery date on this page. Delivery is arranged by ZIP code at checkout, and heavy stone wants the drop spot as close to the water as the truck can safely get, because every yard you move it by hand costs real effort. The delivery page covers the ZIP code check, and if the access down to a creek or a ditch is tight, raise it through Contact before booking a date.
